Description

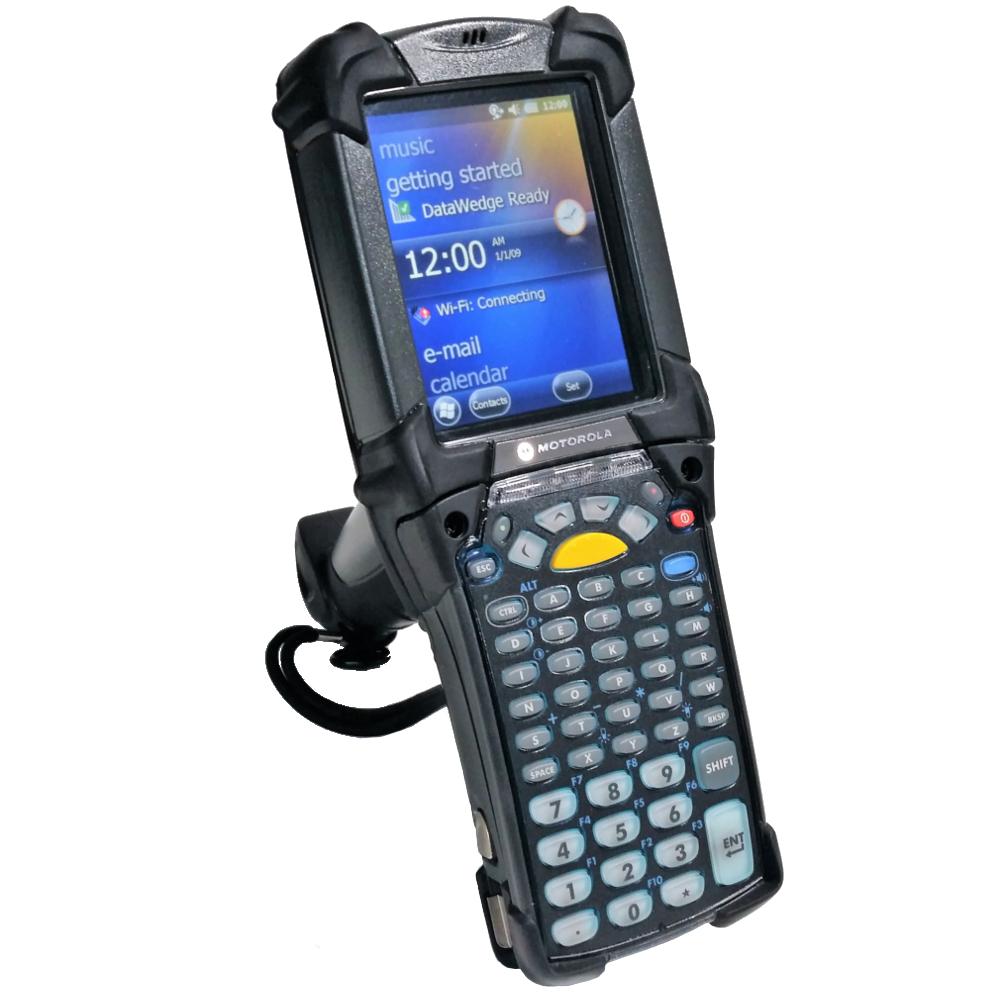

Professionally Refurbished Motorola MC9190-G30SWAQA6WR
PRE-OWNED, MOTOROLA, MC9190-G30SWAQA6WR, MC9190-G, WLAN 802.11 A/B/G, STANDARD RANGE 1D/2D IMAGER, COLOR VGA SCREEN, 256MB/1GB, 28 KEY, WM 6.5, BLUETOOTH, IST
When you need to scan bar codes and collect data in the harshest of environments, the MC9190-G30SWAQA6WR is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G30SWAQA6WR helps get the job done right and fast. You can count on dependable scanning of virtually any bar code ‘ even if the label has been damaged. With the next generation of the highly successful MC9190-G30SWAQA6WR Series in hand, scanning is easier than ever, with point and shoot simplicity for bar codes that are inches or meters away, on the top shelves in the warehouse or deep inside a truck. The new high resolution backlit display is easy to view in any lighting ‘ from the dim corners of a warehouse to the bright sunlight out on the loading dock or tarmac. With more processing power and memory, you can give your workers the same fast and dependable application performance they expect on their desktop. And since the MC9190-G30SWJYA6WR is compatible with all your existing MC9000 Series accessories, you can cost-effectively upgrade to the latest in mobile computing technologies ‘ no need to purchase new cradles, cables, headsets or holsters
We took the best and made it better. The MC9090-G is known for its superior ruggedness ‘ but the MC9190-G30SWAQA6WR takes rugged design to a new level. Just like its predecessor, the MC9190-G passes the same industry leading toughness tests, operating reliably after exposure to heat, cold, dust, rain, a spilled cup of coffee ‘ and 2,000 consecutive tumbles in our rotating tumble drum. Then we strengthened two of the most vulnerable elements ‘ the touchscreen and the scanner exit window. The hardened touchscreen is now more resistant to wear and tear. And since bar code scanning is one of the most important features, we’ve fortified the scanner exit window with environmentally friendly ultra strong Gorilla glass. Practically impervious to damage, the glass can flex with most everyday bumps and drops without shattering or scratching ‘ and the deep chemical strengthening makes most scratches virtually invisible.
Warranty
90 Day limited warranty. Warranty covers defects in workmanship or early failure of components.
The warranty does not cover:
- Abuse / Misuse of the device
- Issues that arise from using the device in an environment not consistent with the ‘User Environment’ described in the product spec sheet.
- Electrical surges
- Physical damage
- Incompatibilities with software and/ or applications
Specifications
MC9190-G Physical & Environmental Characteristics
| Dimensions |
9.1 in. L x 3.6 in. W x 7.6 in. H
23.1 cm L x 9.1 cm W x 19.3 cm H |
| Weight |
27 oz./765 g (includes battery) |
| Keyboard |
28-, 43- and 53-key; Terminal Emulation (5250, 3270, VT) |
| Display |
3.7 in VGA color |
| Power |
PowerPrecision Lithium ion battery 2200 mAh |
Performance Characteristics
| CPU |
Marvell PXA320 processor at 806 MHz |
| Operating System |
Microsoft Windows CE 6.0 or Microsoft Windows Mobile 6.5 Classic |
| Memory |
256MB/1GB |
| Expansion |
SD/MMC Card |
| App Development |
PSDK and EMDK available through Zebra Support Central Web site |
| Data Capture options |
SE960: 1-D standard range scan engine SE1524-ER: 1-D extended range scan engine reads up to 45 ft./ 13.72 m away SE4500: Omnidirectional 1-D/2-D imaging engine reads 1-D and 2-D symbols SE4600: Extended range omnidirectional 1-D/2-D imaging engine reads 1-D and 2-D symbols as close as 8 in./20.32 cm and as far as 30 ft./9.14 m SE4500-DL: 1-D/2-D DL imaging engine reads all 1-D and 2-D codes as well as the PDF codes found on driver’s licenses and other identification documents SE4500-HD: 1-D/2-D DPM imaging engine reads a wide variety of DPM marks on metal, plastic and glass surfaces, including: dot peening, laser etching, molding, stamping or casting |
Wireless Data Communications
| WLAN |
802.11a/b/g |
| Data Rate |
802.11a: up to 54 Mbps; 802.11b: up to 11 Mbps; 802.11g: up to 54 Mbps |
| Antenna |
Internal |
| Frequency Range |
All country dependent: 802.11a ‘ 5 GHz; 802.11b ‘ 2.4 GHz; 802.11g ‘ 2.4 GHz |
| WLAN Security |
WPA2 Enterprise, 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST ( TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6 |
| Bluetooth |
Bluetooth Version 2.1 with EDR |
User Environment
| Operating Temperature |
-4° to 122° F/-20° to 50° C |
| Charging Temperature |
32° to 104° F/0° to 40° C |
| Storage Temperature |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% to 95% non condensing ( Condensation Resistant Configurations Available) |
| Drop Spec |
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G |
| Tumble Spec |
2,000 3.28 ft./1 m tumbles at room temperature (4,000 hits) per IEC Tumble Specification |
| Sealing |
IP64 (electronic enclosure, display and keypad) per IEC Sealing Specification |
| Electrostatic Discharge (ESD) |
±15kVdc air discharge; ±8kVdc direct discharge; ±8kVdc indirect discharge |
Voice & Audio
| Audio |
High quality speaker, microphone and 2.5mm headset jack |
| Push-to-Talk |
PTT (client included); wired headset support, PTT will support headset and speakerphone mode |
| Voice Directed Picking |
TekSpeech Pro Certified; Compatible with 3rd party VDP clients |
Parts Disclosure
Professionally refurbished / Pre-Owned units may include third party parts.
This unit was refurbished by Inventory Accuracy or a trusted affiliate.Â
Please contact us with any questions – (847) 986-5632
